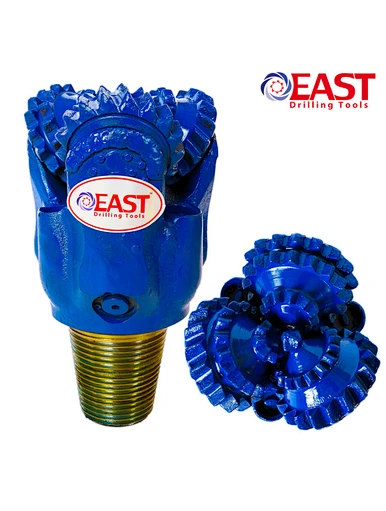

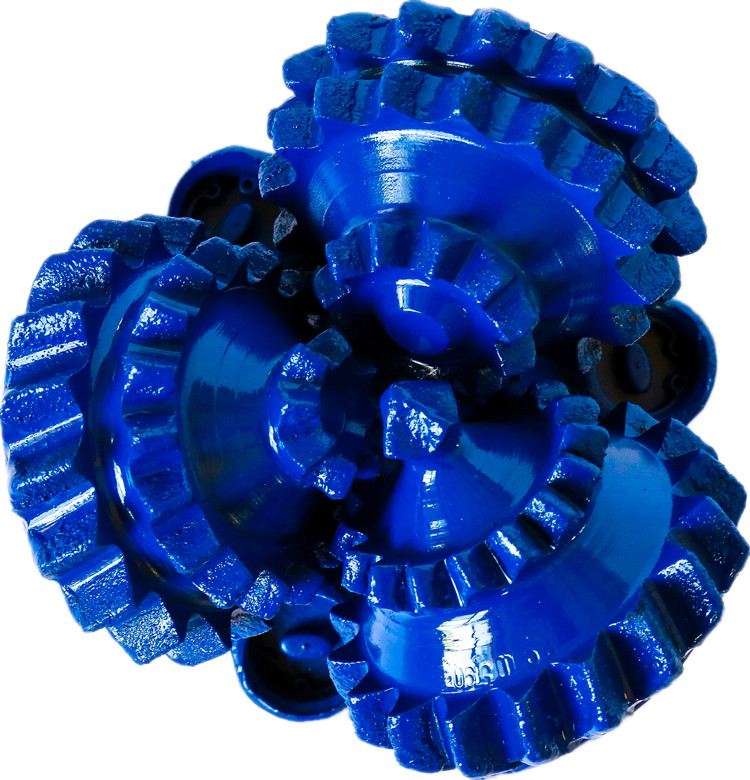

API 6" IADC317 Milled Tooth Bit Tricone Bit Steel Tooth Bit for Well Drilling

API 6" IADC317 Milled Tooth Bit Tricone Bit Steel Tooth Bit for Well Drilling
HA317G
Type: DRILL BIT

Machine Type: Drilling Tool

Material: Carbon steel

Processing Type: Forging

Use: Well Drilling
Order Quantity :
Product Paramenters
API 6"IADC317 Milled Tooth Bit Tricone Bit Steel Tooth Bit for Well Drilling
Tricone bit is mainly used in oil well,water well, and geothermal well drilling engineering.Our well drilling bit is designed and manufactured according to the standard of API 7-1. Its features as long life, high drilling efficiency and low operation cost. At present, more than 20 types drilling bit with sizes ranging from 3"to 26"have been developed by our team, which can be applied to different formations from soft to very hard. There are two main bearings which are O-Ring sealed and Metal Sealed,it can meet clients difference requirements with different drilling technologies such as conventional drilling and directional drilling.
API 6"IADC317 Milled Tooth Bit Tricone Bit Steel Tooth Bit for Well Drilling
Servie Brand
EAST
IADC Code
HA317G
Bit Diameter
6"=152.4mm
Pin Thread
API Reg.3 1/2'' Pin
Bearing Type
Rubber Sealed Journal Bearing
Net/Gross Weight
20/22 kgs
Packing Size
200*200*300 mm
Rotary Speed(r/min)
150~50RPM
Normal WOB
0.35~1.20KN/MM
MOQ
1Piece
Applications
Medium hard with high compressive strength and thick&hard stringers,such as hard shale,limestone,sandstone and dolomite,etc.
Optional Features of Tricone Bit

G - Guage Protection

Special carbide inserts are strategically fixed on the back
of cones to effectively reduce wear in abrasive formation and directional and horizontal wells and extend the bit life.

L - Bit Stabilization

The function of bit stabilization is for improving working situation of bit,which can effectively protect head abd compensator recess in well drilling.

C - Center Jet

Center jet can avoid bit balling,eliminate resorting area of fluid at bottom hole,expedition upward flow of cutting and improve ROP.Its suitable for drilling in soft to medium soft formations with low compressive strength and high drill ability.

T - Enhanced Carbide Inserts

The enhanced carbide inserts in heel ,gage rows and head OD can make the bit to work long time and better performance when drilling in more abrasive ,hard and extreme hard formations.
Abous us

Cangzhou East Drilling Tools Co.,Ltd  is a China professional manufacturer of tricone bit,PDC bit,hole opener ,drag bit inOil&Gas,Mining and Water Well Drillingfields.

Our company has worked on production and exporting business more than 16 years and have exported to America,UK,Canada,Italy,Dubai,Singapore,Brazil,South Africa and so on.

We have professional team to offer good quality drilling bits and also can provid creative solutions for you. So welcome to visit us !


Packing & Delivery

Export Packing

Plywood box is the most popular packing for tricone bit,we also accpet special packing reqirement before shipment or production.For example ,Carton Box Design with your company name.

Delivery Time

Usually we have stock for the normal sizes of tricone bit ,so the delivery time will be 2-3 work days,we need the time to paint and packing.
If we dont have stock or stock is not enough,we will need 7-30 work days to produce as your requirement.
then the exactly lead time will depond on your required quantity.
