geothermal well drilling.
Our tricone bits are designed and manufactured according to the API & ISO standard which are long life, high drilling efficiency and low operation cost.
At present, we can produce bit sizes ranging from 2 7/8"to 26"and they can be applied to different formations from soft to very hard.
| API 5 1/4"IADC517 TCI Tricone Bit Tricone Drill Bit for Well Drilling | |
| Bit Diameter | 5 1/4"=133mm |
| IADC Code | 517 |
| Product Standard | API Spec. 7-1 |
| Pin Thread | API Reg. 3 1/2" |
| Sealed Bearing | O-Ring Sealed Journal |
| Normal WOB | 0.5~1.05 KN/MM (Bit Diameter) |
| Gross / Net Weight | 17 / 20 Kgs |
| Packing Size | 150 X150 X 250 mm |
| Rotary Speed | 120~50 RPM |
| Cutting Structure | Conical and conical scoop chisel tungsten carbide compacts. |
| Drilling Formation | Soft with thin & hard stringers,such as salt bed,mudstone,sandstone,soft limestone and hard shale,etc. |
 | G - Guage Protection Special carbide inserts are strategically fixed on the back of cones to effectively reduce wear in abrasive formation and directional and horizontal wells and extend the bit life. |
 | L - Bit Stabilization The function of bit stabilization is for improving working situation of bit,which can effectively protect head abd compensator recess in well drilling. |
 | C -Center Jet Center jet can avoid bit balling,eliminate resorting area of fluid at bottom hole,expedition upward flow of cutting and improve ROP.Its suitable for drilling in soft to medium soft formations with low compressive strength and high drill ability. |
 | T -Enhanced Carbide Inserts The enhanced carbide inserts in heel ,gage rows and head OD can make the bit to work long time and better performance when drilling in more abrasive ,hard and extreme hard formations. |
| K - Hard Formation Cutting Structure The bit adopts unique design parameters and extended cutting tooth-top to improve the bottom hole crushing volume and bottom hole coverage of the teeth and improve the penetration rate of the bit in the hard formation drilling. |

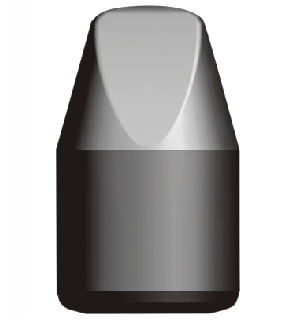

 | X - Wedge Tooth The main cutting teeth of the bit are wedge-shaped teeth, which have the characteristics of high cutting efficiency and strong crushing resistance for a specific medium soft to medium hard formation, effectively improving the penetration rate of the bit and making the bit working longtime. |
 | Y -Conical Insert Shape The main cutting teeth of the bit are conical teeth,which are suitable for drilling in hard and brittle formation.Usually IADC 637 tricone bit use this shape carbide insert on cones. |
Cangzhou East Drilling Tools Co.,Ltd is a China professional manufacturer of tricone bit,PDC bit,hole opener ,drag bit in Oil&Gas,Mining and Water Well Drilling fields.
Our company has worked on production and exporting business more than 16 years and have exported to America,UK,Canada,Italy,Dubai,Singapore,Brazil,South Africa and so on.
We have professional team to offer good quality drilling bits and also can provide creative solutions for you.
Export Packing
Plywood box is the most popular packing for tricone bit,we also accpet special packing reqirement before shipment or production.For example ,Carton Box Design with your company name.
Delivery Time
Usually we have stock for the normal sizes of tricone bit ,so the delivery time will be 2-3 work days,we need the time to paint and packing.
If we dont have stock or stock is not enough,we will need 7-30 work days to produce as your requirement.
then the exactly lead time will depond on your required quantity.
Q: Are you trading company or manufacturer ?
A:We are factory and has exported many years.
Q: How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. We need produce time 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for testing with very good price but is not free,we can reduce some money for further coopertation .
Q: What is your terms of payment ?
A:If the goods on stock, 100% in advance. If the lead time more than 10 work days,Payment 30% T/T in advance ,rest balance before shipment,or 100% payment in advance through Alibaba.com.
