China BW600/10 Mud Pump for Water Well Drilling

China BW600/10 Mud Pump for Water Well Drilling

Model Name : BW600/10

Delivery Term : EXW,FOB,CFR,CIF

minimum order 1 Pieces

Supply Ability : 20Pieces / Month

Country of Origin : China

Lead Time : 3-15Days

Type:Drilling Mud Pump
Model Number:BW600/10
Product Name:Mud Pump for Water Well Drilling
Model:BW600/10
Mud Pump Cylinder Diameter:100 MM
Stroke Raing SPM:110 MM
Power:55 KW
Place of Origin:China
Motor:Deiesel Engine
After-Sales Service:1 Year offer free parts
Weight:1400 Kgs
Packing Size:1500*900*1250 MM

Order Quantity :

Product Description

China Good Quality BW600/10 Mud Pump for Water Well Drilling

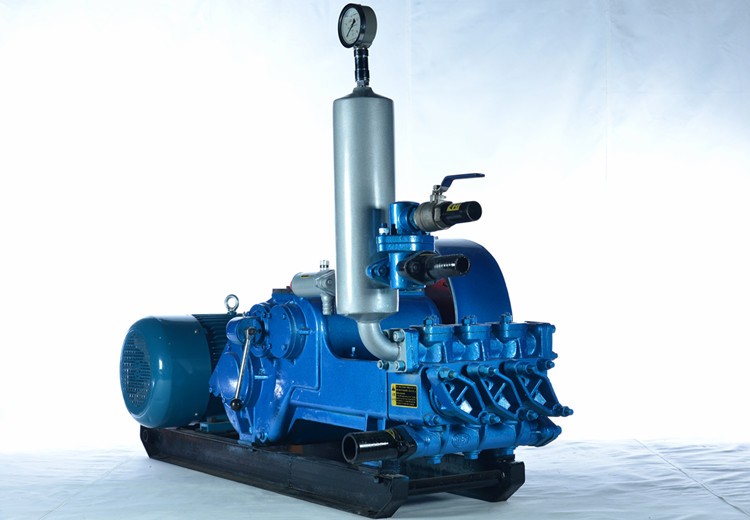

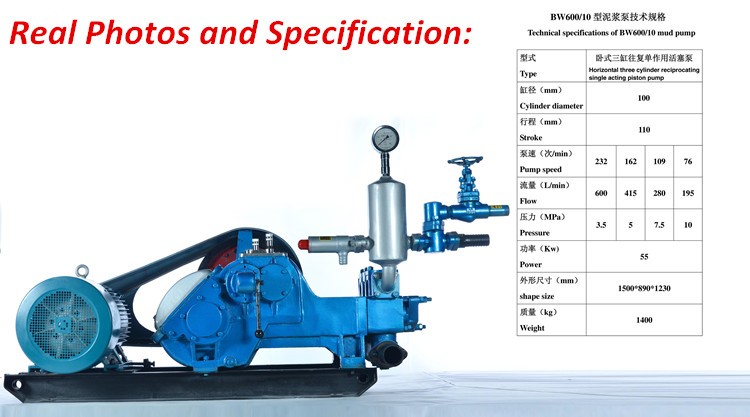

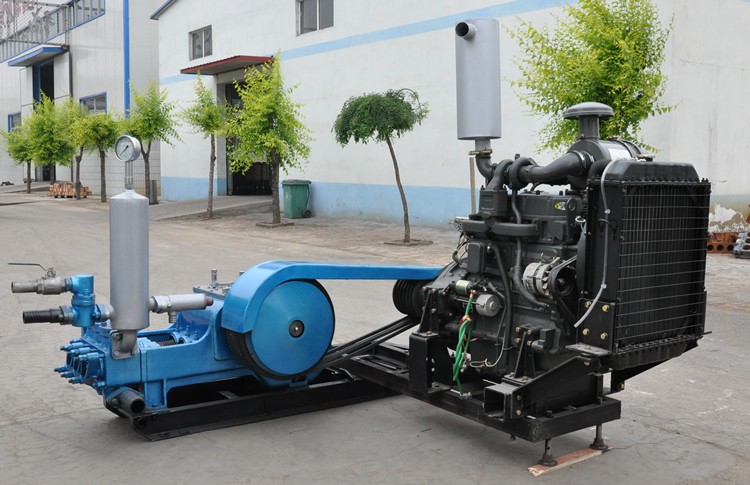

Photos and Specification of BW 600/10 Mud Pump :

Mud Pump Type	Horizontal Three Cylinder Reciprocating Single Acting Piston Pump
Cylinder Diameter	100 mm
Stroke	110 mm
Pump Speed	232 , 162	109 , 76 times/min
Flow	600 , 415	280 , 195 L/Min
Pressure	3.5 , 5	7.5 , 10 Mpa
Power	55 KW
Shape Size	1500x890x1250 mm
Weight	1400 Kgs
