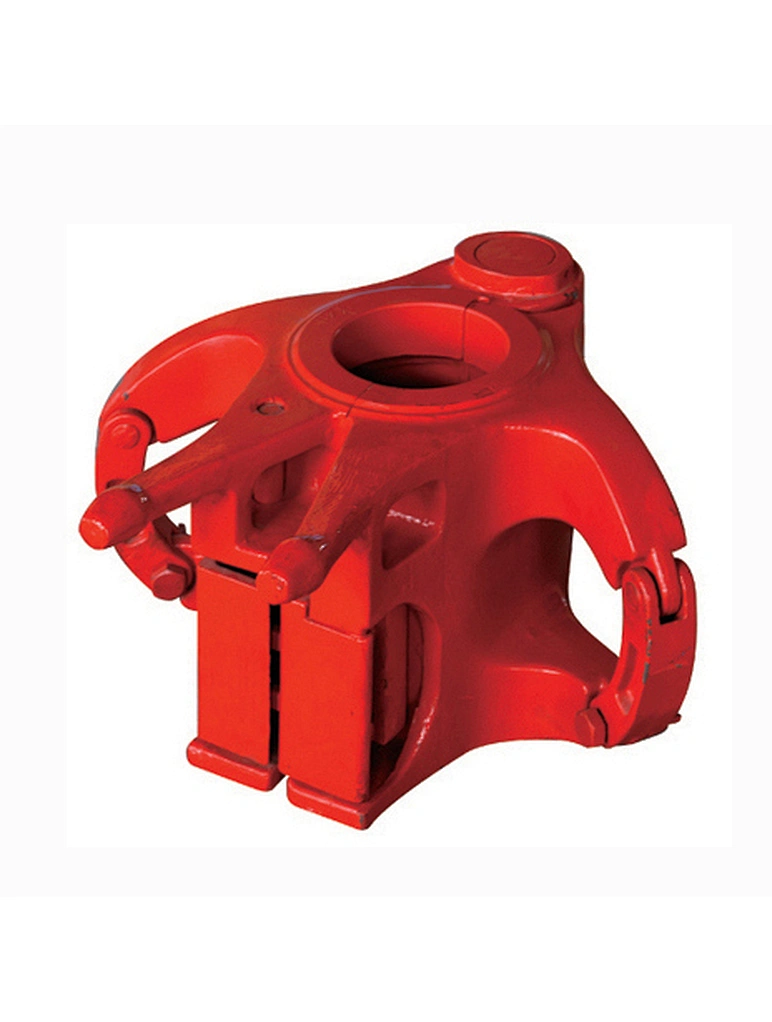

Type TA Elevators for Drill Collar Drill Pipe Casing and Tubing

api 5l casing tubing and drill pipe
Type TA Elevators for Drill Collar Drill Pipe Casing and Tubing
Type TA
EXW,FOB,CFR,CIF
1 Pieces
30Pieces / Month
China
3-15Days
Model TA center latch elevator with square shoulder is suitable for handling drill collar, casing and tubing. The load ranges from 150 tons to 350 tons.

The size ranges are from 2 3/8" to 5 1/2".

This products are designed and manufactured according to the requirements in API Spec 8C.
Order Quantity :

API Type TA Elevators for Drill Collar Drill Pipe Casing and Tubing

Model TA center latch elevator with square shoulder is suitable for handling drill collar, casing and tubing. The load ranges from 150 tons to 350 tons.

The size ranges are from 2 3/8"to 5 1/2".

This products are designed and manufactured according to the requirements in API Spec 8C.
API Type TA Elevators for Drill Collar Drill Pipe Casing and Tubing
Model
Pipe Size (in)
Rated Cap. (Tons)
Drill Collar
Casing
Tubing (NU)
TA-35
2 3/8"- 3 1/8"
/
1.05- 2 7/8
35
TA-65
2 3/8"- 3 1/8"
/
1.66 - 2 7/8
65
TA-100
3 1/8"- 5 1/4"
/
2 3/8"- 5"
100
TA-150
4 1/8"- 11 1/4"
4 1/2"- 10 3/4"
/
150
