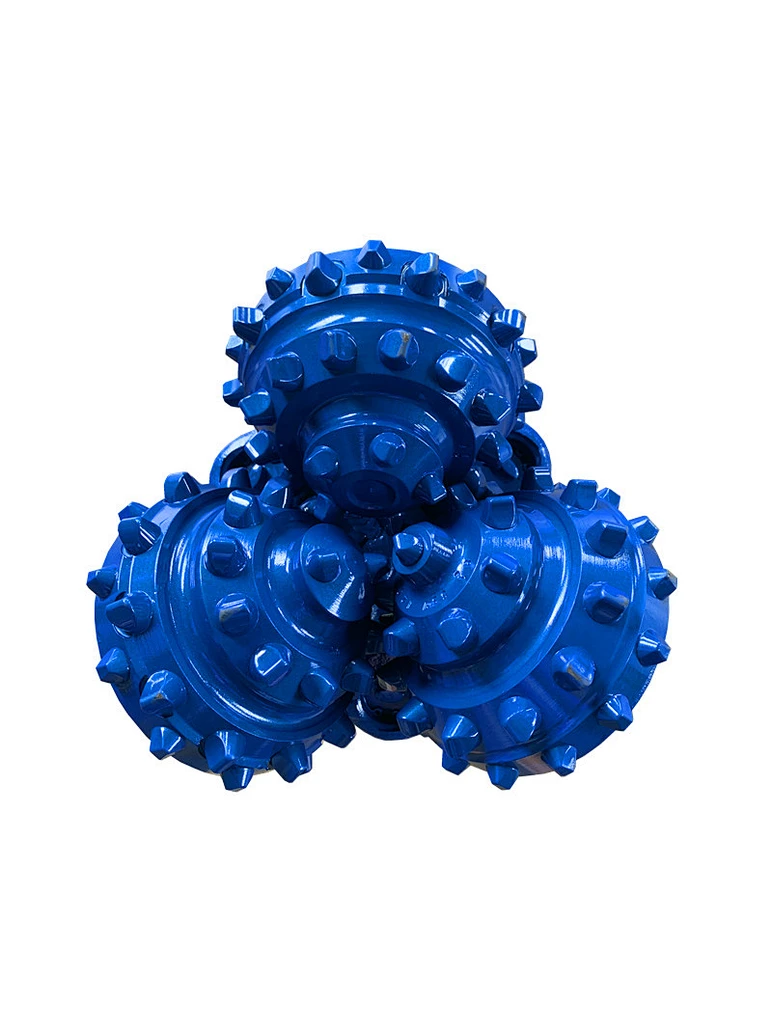

API 9 1/2" IADC537 tricone bit for drilling equipment

Unit Price

USD1600.00 - USD1650.00 / Pieces

Delivery Term : FOB

minimum order 1 Pieces

Supply Ability : 30.0Pieces / Month

Country of Origin : Tianjin Xingang Seaport,Shanghai Seaport,Guangzhou Seaport,Qingdao Seaport

Order Quantity :

Product name:TCI Tricone Bit
Diameter:9 1/2"=241.3mm
IADC CODE:HA537G
COLOUR:Blue
Brand name:EAST
Bearing type:Rubber (O-Ring )Sealed Journal Bearing Bit
MOQ:1 Piece
Weight:57.5kg
Connect thread:6 5/8"
Application:Medium soft with low compressie strength and harder abrasive stringers
Condition:New
Warranty:6 months
Applicable Industries:Energy & Mining
Local Service Location:United States
Showroom Location:United States
Video outgoing-inspection:Provided
Machinery Test Report:not available
Marketing Type:Hot Product 2019
Type:DRILL BIT
Machine Type:Drilling Tool
Certification:API
Material:Carbon Steel
Processing Type:CASTING
Use:Well Drilling
Place of Origin:CN;HEB
Brand Name:EAST

Tricone bit is mainly used in oil well,water well, and geothermal well drilling engineering.Our well drilling bit is designed and manufactured according to the standard of API 7-1. Its features as long life, high drilling efficiency and low operation cost. At present, more than 20 types drilling bit with sizes ranging from 3"to 26"have been developed by our team, which can be applied to different formations from soft to very hard.There are two main bearings which are O-Ring sealed and Metal Sealed,it can meet clients difference requirements with different drilling technologies such as conventional drilling and directional drilling.

API 9 1/2"IADC537 Tricone Bit TCI Tricone Bit for Well Drilling

Product Paramenters

API 9 1/2"IADC537 Tricone Bit TCI Tricone Bit for Well Drilling
Product Name	TCI Tricone Bit
Servie Brand	EAST
IADC	HA537G
Bit Diameter	9 1/2"=241.3mm
Pin Thread	API Reg.6 5/8"
Bearing Type	Rubber (O-Ring )Sealed Journal Bearing Bit
Net/Gross Weight	57/60 kgs
Packing Size	300300400MM
Rotary Speed(r/min)	100-60
Normal WOB	0.60-0.90
Available Size	3 7/8"-36"
Cutting Structure	Offset crested scoop compacts in inner row,wedge compacts in outer row,imequable spaced compacts arrangement,and a row of trimmers is added between gage row and heel row
Applications	Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
MOQ	1Piece

Details Images

FAQ

FAQQ: Your Kingdream tricone bits are new or renew ?A: We can promise our Kingdream bits are 100% new with orignal packing and documents.Q: How long is your delivery time for Kingdream bits?A: Generally it is 3 days if we have stock. We need lead time 30 days if the goods are not in stock, it is according to quantity.Q: What is your terms of payment ?A: If the bits on stock, 100% in advance. If the lead time more than 10 work days,Payment 30% T/T in advance ,rest balance before shippment,or 100% payment in advance through Alibaba.com Trade Assurance.If you have another question, pls feel free to contact us as below:

Certifications

TRICONE DRILL BIT - STANDARD CONNECTION SIZES
Bit Diameter (inch)	API Reg. Thread Size	Make Up Torque(KN.M)
3 1/2 - 4 1/2	2 3/8	4.1-4.7
4 5/8 - 4 7/8	2 7/8	6.1-7.5
5 1/2 - 6 3/4	3 1/2	9.5-12.2
7 1/2 - 8 3/4	4 1/2	16.3-21.7
9 1/2 - 13 3/4	6 5/8	38-43.4
14 1/2 - 26	7 5/8	46.1-54.2
