API 8 1/2" IADC437 Tricone Bit Three Cone Bit Roller Cone Bit
8 1/2" IADC437
EXW,FOB,CFR,CIF
1 Pieces
30.0Pieces / Month
China
3 - 7Days
Order Quantity :
Product Description
API 8 1/2"IADC437 TCI Tricone Bit Roller Cone Bit for Well Drilling
TCI Tricone Bit is the most popular drilling bit in the world which can be widely used for Oil and Gas Drilling,Mining,Water Well,Geological Exploration areas.
The IADC code from 417 to 837 can meet your difference hard formation drilling.
Also you can tell us the drilling formations,then we can offer professional suggestion for suitable IADC.
TCI Tricone Bit is the most popular drilling bit in the world which can be widely used for Oil and Gas Drilling,Mining,Water Well,Geological Exploration areas.
The IADC code from 417 to 837 can meet your difference hard formation drilling.
Also you can tell us the drilling formations,then we can offer professional suggestion for suitable IADC.
| API 8 1/2"IADC437 TCI Tricone Bit Roller Cone Bit for Well Drilling | |
| Bit Diameter | 8 1/2”= 215.9 mm |
| IADC Code | 437 |
| Product Standard | API Spec. 7-1 |
| Pin Thread | API Reg. 4 1/2 |
| Sealed Bearing | O-Ring Sealed Journal Bearing |
| Normal WOB | 0.35~0.95 KN/MM (Bit Diameter) |
| Gross / Net Weight | 38 / 42 Kgs |
| Packing Size | 250 X 250 X 320 mm |
| Rotary Speed | 140~60 RPM |
| Cutting Structure | Offset crested scoop compacts in inner row,wedge compacts in outer row,imequable spaced compacts arrangement,and a row of trimmers is added between gage row and heel row |
| Drilling Formation | Medium soft with low compressive strength and harder abrasive stringers,such as hard shale, hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc. |
| Additional Features which you can choose | |
 | G - Gauge Protection Special carbide inserts are strategically fixed on the back of cones to effectively reduce wear in abrasive formation and directional and horizontal wells and extend the bit life. |
 | C - Center Jet Center jet can avoid bit balling,eliminate resorting area of fluid at bottom hole,expedition upward flow of cutting and improve ROP.Its suitable for drilling in soft to medium soft formations with low compressive strength and high drill ability. |
 | T - Enhanced Carbide Inserts The enhanced carbide inserts in heel ,gage rows and head OD can make the bit to work long time and better performance when drilling in more abrasive ,hard and extreme hard formations. |
 | L - Bit Stabilization The function of bit stabilization is for improving working situation of bit,which can effectively protect head and compensator recess in well drilling. |
| Carbide Insert Shapes of TCI Tricone Bit | |
 | K - Hard Formation Cutting Structure The bit adopts unique design parameters and extended cutting tooth-top to improve the bottom hole crushing volume and bottom hole coverage of the teeth and improve the penetration rate of the bit in the hard formation drilling. |
 | X - Wedge Tooth The main cutting teeth of the bit are wedge-shaped teeth, which have the characteristics of high cutting efficiency and strong crushing resistance for a specific medium soft to medium hard formation, effectively improving the penetration rate of the bit and making the bit working long time. |

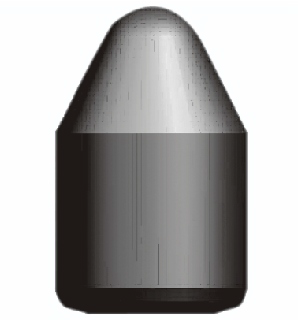

 | Y - Conical Insert Shape The main cutting teeth of the bit are conical teeth,which are suitable for drilling in hard and brittle formation.Usually IADC 637 tricone bit use this shape carbide insert on cones. |
4. Company Profile
Cangzhou East Drilling Tools Co.,Ltd is a China professional manufacturer of tricone bit,PDC bit,hole opener,drag bit.
Our company has worked on production and international business more than 15 years and have exported to America,
United Kingdom,Canada,Italy,Dubai,Singapore,Brazil,South Africa and so on.
We have professional team to offer good quality drilling bits and tools,also can provide creative solutions for you.
Recommend Products
TCI Tricone Bit
Steel Tooth Bit
PDC Bit
Step Drag Bit
Core Barrel
Single Roller Cone
Hole Opener / Reamer Bit
Wellhead Tools
Casing&Drill PipFAQ
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and has exported many years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. We need produce time 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for testing wｉth very good price but is not free,we can reduce some money for further coopertation .
Q: What is your terms of payment ?
A: If the goods on stock, 100% in advance. If the lead time more than 10 work days,Payment 30% T/T in advance ,rest balance before shippment,or 100% payment in advance through Alibaba.com.
