API 7-7/8" Tricone Roller Bit Steel Tooth Bit for Well Drilling

Delivery Term : FOB

Order Quantity :

Condition:New
Warranty:6 months
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Local Service Location:canada
Local Service Location:turkey
Local Service Location:UNITED KINGDOM
Local Service Location:United States
Local Service Location:ITALY
Local Service Location:brazil
Showroom Location:canada
Showroom Location:turkey
Showroom Location:UNITED KINGDOM
Showroom Location:United States
Showroom Location:ITALY
Showroom Location:brazil
Place of Origin:CN;HUB
Type:DRILL BIT
Machine Type:Drilling Tool
Certification:API
Material:CARBIDE
Processing Type:CASTING
Use:Well Drilling
Brand Name:Kingdream
Product Name:API 7-7/8"Tricone Roller Bit Steel Tooth Bit for Well Drilling
Product Size:7 7/8"=200 mm
IADC:127
Weight:30/35 Kgs
Bearing Type:O-Ring Sealed Journal
Pin Connection:API Reg. 4 1/2"
Hydraulic Design:3 Nozzles with Snap Rings
Standard:API Spec 7-1
Condition:100% New
Usage:Oil&Gas and Water Well Drilling

API 7-7/8"Tricone Roller Bit Steel Tooth Bit for Well Drilling

Our tricone bits are mainly used in oil well,water well,and geothermal well drilling engineering.

East drilling bits are designed and manufactured according to the API & ISO standard which characteristics are long life, high drilling efficiency and low operation cost.

At present, we can produce bit sizes ranging from 2 7/8" to 26"and they can be applied to difference formations from soft to very hard.

Product Description

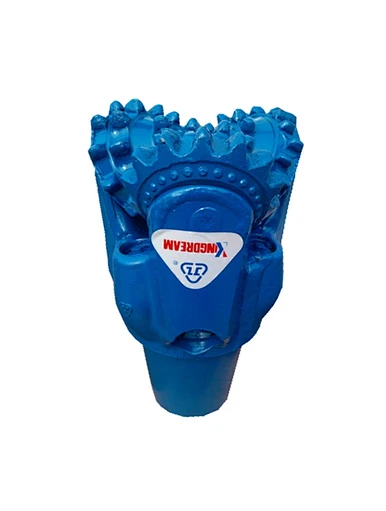

7-7-8-tricone roller bit.jpg

API 7-7/8"IADC127 Tricone Roller Bit Steel Tooth Bit for Well Drilling
Diameter	7-7/8” = 200 mm
Model	HA127G
Pin Thread	API Reg. 4 1/2”
Gross Weigh/Net Weight	30 / 35 Kgs
Packing Size	250X250X400 mm
Product Standard	API SPEC 7-1
Bearing	O-Ring Sealed Journal Bearing
Normal WOB	0.35~1.05 KN/MM
Rotary Speed	100~50RPM
Cutting Structure	Large dia offset crested scoop compacts in inner row,with added number of compact rows,and a row of trimmers is added between gauge row and heel row.
Drilling Formation	Soft with low compressive strength and high drill ability,such as shale,clay,sandstone and soft limestone,etc

About Tricone Bit

API EAST Brand Tricone Bit Tolerance
Outer Diameter of Tricone Bit	Outer Diameter Tolerance
3 3/8 ~ 13 3/4 inch	0 ~ 0.0313 (1/32) inch	0 ~ 0.79 mm
14 ~ 17 1/2 inch	0 ~ 0.0625 (1/16) inch	0 ~ 1.57 mm
17 5/8 ~ 26 inch	0 ~ 0.0625 (1/16) inch	0 ~ 2.38 mm

EAST Brand Nozzle Sizes of Tricone Bit
Code of Nozzles	Tricone Bit Diameter		O.D.of Nozzles	Length of Nozzles	Inner Dia. of Nozzles
Code of Nozzles	inch	mm	mm	mm	mm
S 0	3 5/8 ~ 4	92.1 ~ 101.6	18.12	15.96	6 ~ 14
S 1	4 1/8 ~ 5 3/4	104.78 ~ 146.1	20.30	17.48	6 ~ 14
S 2	5 7/8 ~ 7 3/8	149.2 ~ 187.3	23.50	19.05	6 ~ 16
S 3	7 1/8 ~ 8 1/4	190.5 ~ 209.6	29.74	20.62	6 ~ 22
S 4	8 3/8 ~ 14 5/8	212.7 ~ 371.5	32.89	26.97	6 ~ 22
S 5	14 3/4 ~ 26	374.6 ~ 660.4	40.84	26.97	6 ~ 22
SC2	8 3/8 ~ 11	212.7 ~ 279.4	23.50	26.00	6 ~ 14
SC4	11 5/8 ~ 17 1/2	295.3 ~ 444.5	32.89	35.32	6 ~ 22

About us

Cangzhou East Drilling Tools Co.,Ltd is a professional manufacturer of TCI tricone bit,steel tooth bit,PDC bit,hole opener ,drag bit in China which can be used for Oil&Gas,Mining and Water Well Drilling fields. We have worked on production of good quality drilling bits since 2008,and export toUSA,UK,Middle East,South Africa,Singapore,India,more than 20 countries. Our professional team also can provide creative solutions for your special needs.
